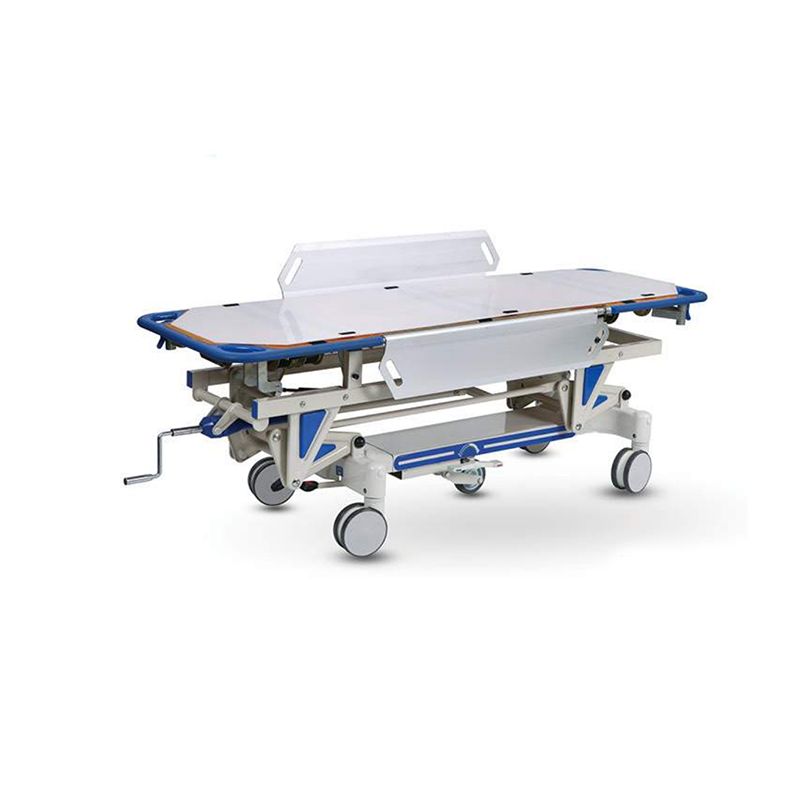

Hospital Multifunctional Maunal Transfer Stretcher Medical Bed

Short Description:

Turn the crank to adjust height,Turn clockwisely,the bed board will go up. Turn anticlockwisely,the bed board will go down.

Clear arrow symbols to instruct the user to operate.

Central lockable 360° swivel castors(Dia.150mm).Retractable 5th wheel provides effortless directional movement and conrnering.

Aluminum alloy rotary side rails can be laid out on a bed positioned next to the stretcher to act as a transfer board for easy and quick transfer.


Product Detail

Product Tags

Product Description



One of the outstanding features of our manual transfer stretchers is their unique height adjustment mechanism. Users can easily adjust the height of the bed simply by turning the crank. Turn the bed clockwise to raise the bed to ensure the patient is in the best position. Conversely, counter-clockwise rotation lowers the height of the bed for ease of use and comfort. To ensure that the operation is clear and intuitive, we have added clear arrow symbols to guide users to use this feature effectively.

But that’s not all. For enhanced mobility and maneuverability, our manual transfer stretchers are equipped with a central lockable 360° rotating caster with a diameter of 150 mm. These high-quality casters allow for easy directional movement and rotation, allowing healthcare professionals to easily navigate tight Spaces. In addition, it is equipped with a retractable fifth wheel, which further enhances the mobility of the stretcher.

We understand the importance of seamless transfer between different medical units, which is why we equip our manual transfer stretchers with aluminum alloy rotating guardrails. These rails can be easily placed on the bed next to the stretcher, turning it into a convenient transfer plate. This allows the patient to be transferred quickly and easily, minimizing the risk of any discomfort or injury during the process.



Product Parameters



Overall dimension(connected) 2310*640MM
Height range(bed board C to ground) 850-590MM
Bed board C dimension 1880*555MM
Horizontal movement range(bed board) 0-400mm
Net weight 92KG
